-材料:铁壳、钕铁硼磁钢、注塑圈/环氧胶
–镀层:镍
–充磁方向:轴向充磁
-最高工作温度:+80℃
-材料:铁壳、钕铁硼磁钢、注塑圈/环氧胶
–镀层:镍
–充磁方向:轴向充磁
-最高工作温度:+80℃

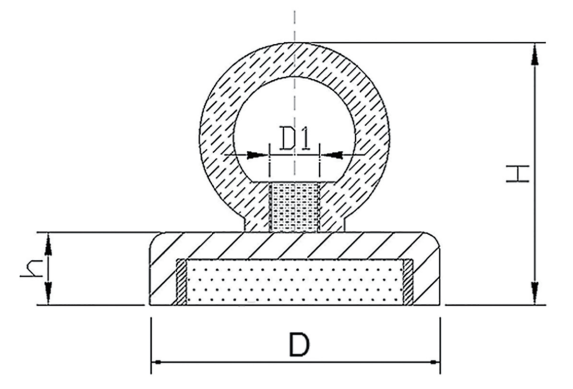

型号 | 尺寸(mm) | 吸力 (Kg) | |||
Model | D | D1 | D2 | H | |
H20 | 20 | 4 | 26 | 7 | 9 |
H25 | 25 | 5 | 31 | 8 | 22 |
H32 | 32 | 6 | 37 | 8 | 34 |
H36 | 36 | 6 | 37 | 8 | 41 |
H42 | 42 | 8 | 48 | 9 | 68 |
H48 | 48 | 8 | 50.5 | 11.5 | 81 |
H60 | 60 | 8 | 54 | 15 | 113 |
H75 | 75 | 10 | 66 | 18 | 164 |
H80 | 80 | 10 | 66 | 18 | 250 |
H90 | 90 | 10 | 66 | 18 | 300 |
H100 | 100 | 12 | 74 | 18 | 400 |
H120 | 120 | 12 | 74 | 18 | 500 |
H136 | 136 | 16 | 86 | 20 | 600 |
